Oracle CHM(IPD/OS) graphical report with gnuplot

another post on sar graphical report with gnuplot

ipd/os is a very useful tool to monitor/collect system resource status, and from release 11.2.0.3, it’s now merged as a standard component of oracle clusterware.

the new name: oracle CHM(Cluster Healthy Monitor) shows it’s now a tool for clusterware/rac, it’s very useful to record resource usage and status upto 3days.

but ipd/os report is just plain txt with boring data, it’s a better way to show as a graphical report, gnuplot helps.

FOLLOWING DATA IS JUST USED FOR DEMO,  DOESNT IMPLICATE ANY PERFORMANCE STATUS OF RUNNING PRODUCTION ENV.

here’s a sample data from classic ipd/os output(the newest chm output may contains tiny different on formatting), it contains sample data from 07:00:00-10:00:00 for node01.

ipdos_data_node01 <this sample file is very large 100M+…. not upload on this server…>
Whoever would like to get the sample data and want to try, please click here:

#1.  get the time column.

Sample: time_node01



Following, to retrieve necessary data on cpu/mem usage and iowait #.

#2. format the text, just collect usable data.

Sample:resource_data_node01



#3. get the cpu usage column.

Sample:cpu_node01



#4. get the iowait number column.

Sample:iowait_data_node01



#5. get memory usage column.
ipd/os just provide column memory free/total/cache,  like:

to calculate the usage%, need to use (physmemtotal – physmemfree – mcache) / physmemtotal *100%

so we need to get the 3 columns.

Sample:mem_usage_node01

run the file to get result..

Sample: mem_node01

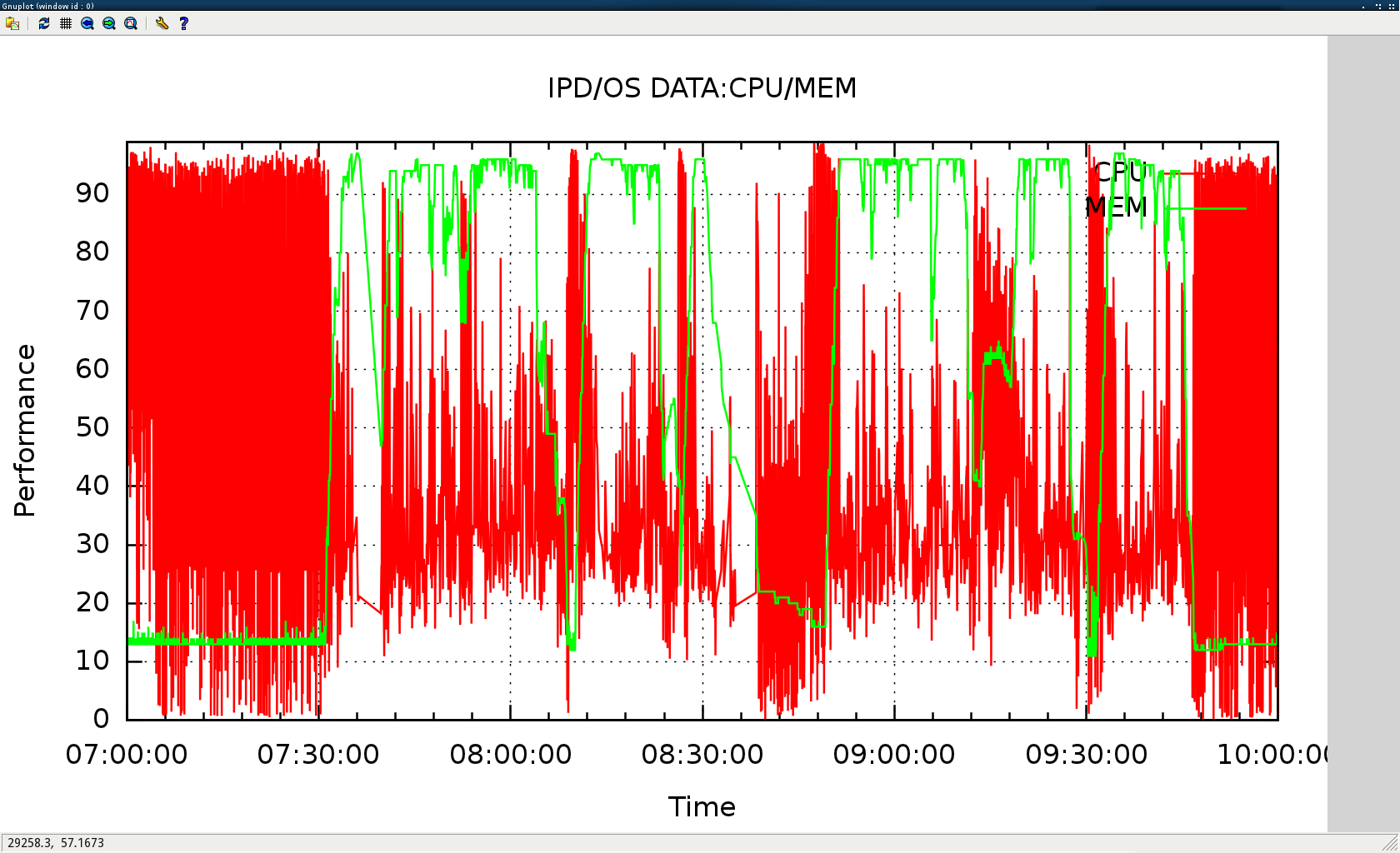

#6 get the report for cpu/mem usage.

Sample: ipdos_cpu_mem_gnuplot_node01
run gnuplot with following cmd:

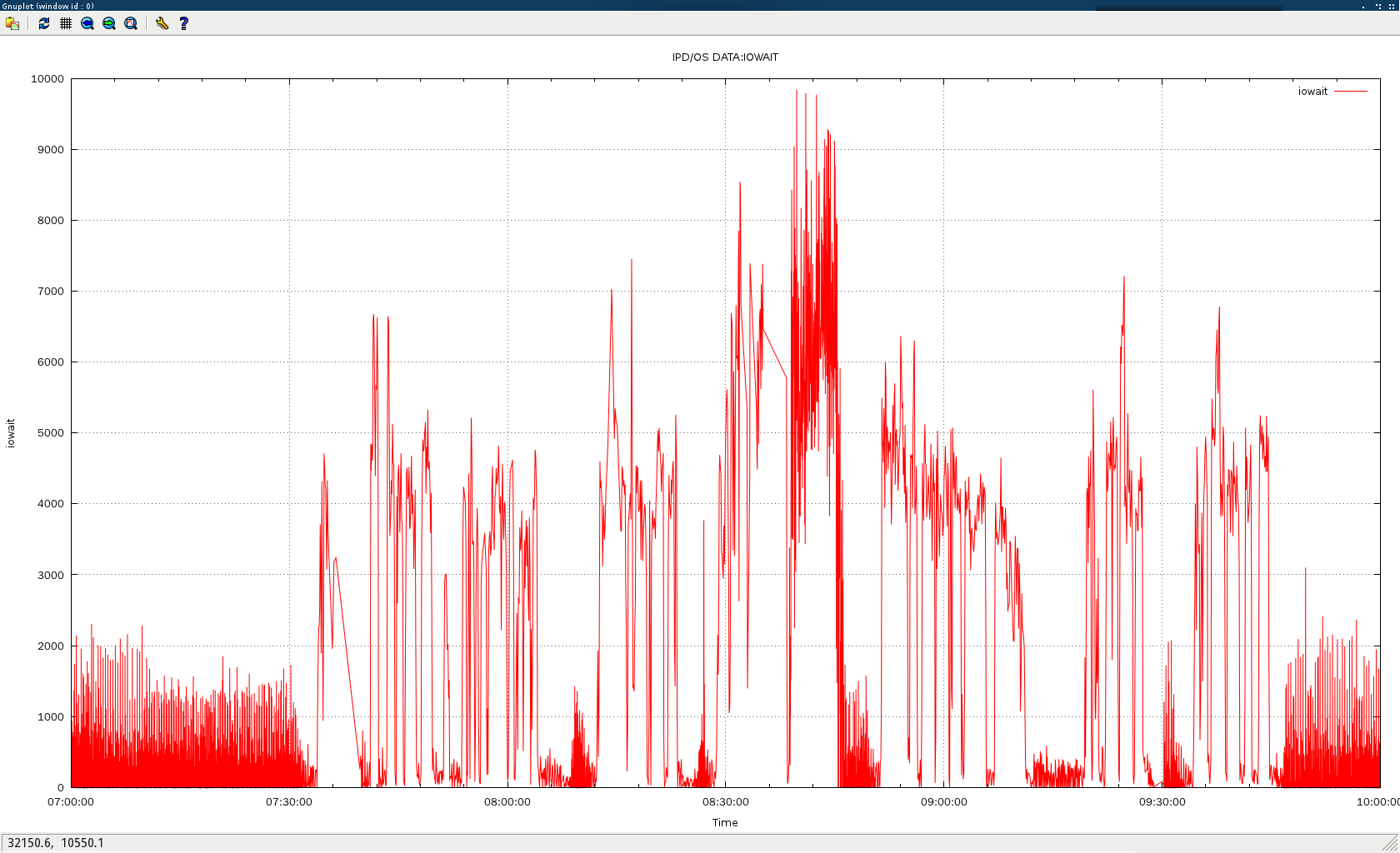

#7 get report for iowait usage.

Sample: ipdos_iow_gnuplot_node01

run gnuplot with following cmd:















#8. comparison on different nodes.
we can show data on 1node for a duration, and also it helps to compare different node status.

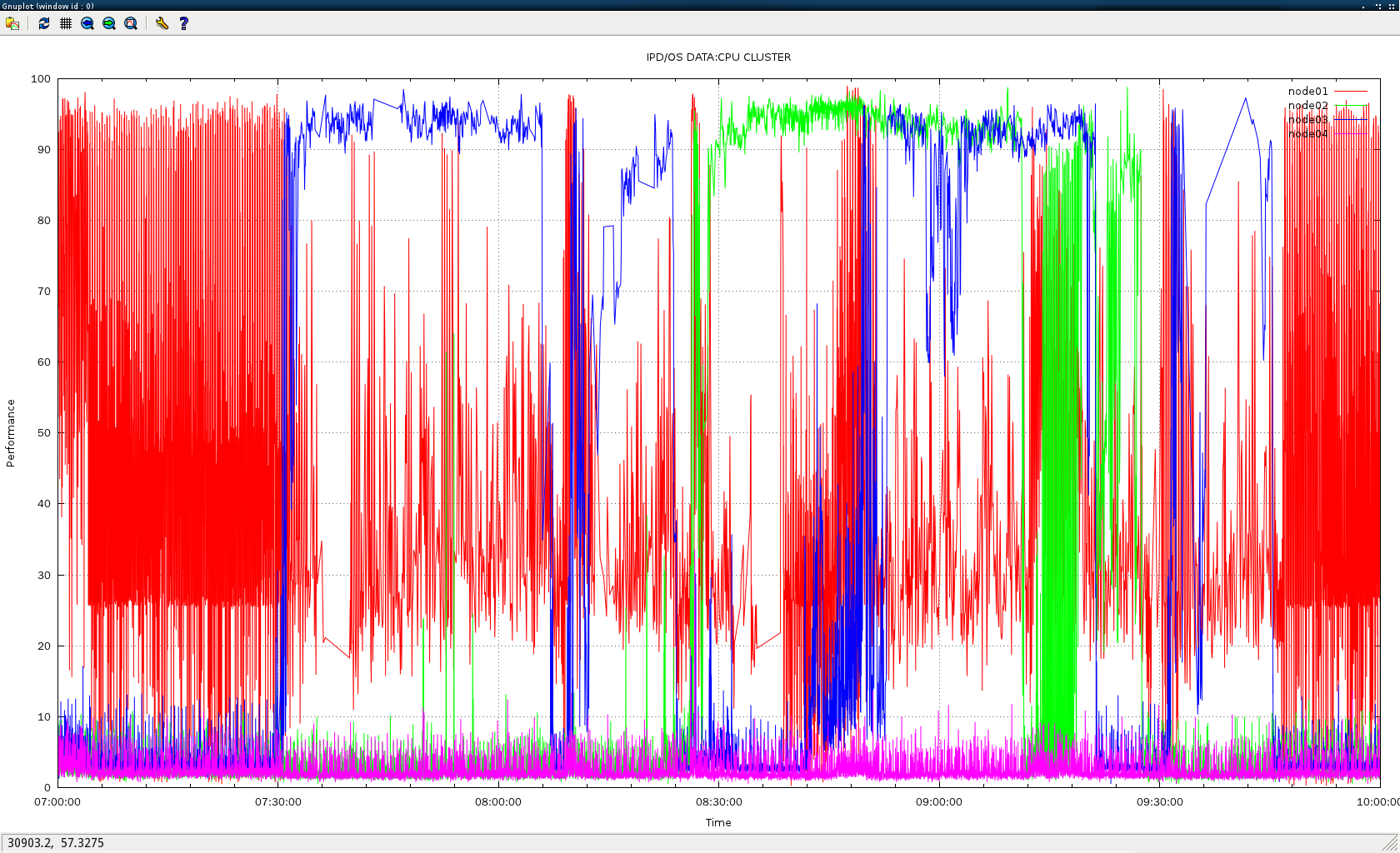

following is a sample to show a four-node cluster running cpu usage:
4 samples, each records the cpu usage,
Sample:
ipdos_cpu_mem_gnuplot_node01
ipdos_cpu_mem_gnuplot_node02
ipdos_cpu_mem_gnuplot_node03
ipdos_cpu_mem_gnuplot_node04

*** why not combine the 4 samples, merge  into 1 text file?
well, if you watch into the 4files, they’re of different size(line#),  different issues matter…
when some node evicted/rebooted, os data that time may lose on that node,
or when the sys stress is very very high, ipd/os will dump data using a longer interval (>1s).
So it’s fine to use different files,  of course they all dumps the same duration 07:00:00-10:00:00.
gnuplot accepts different file inputs.
run gnuplot with following cmd:

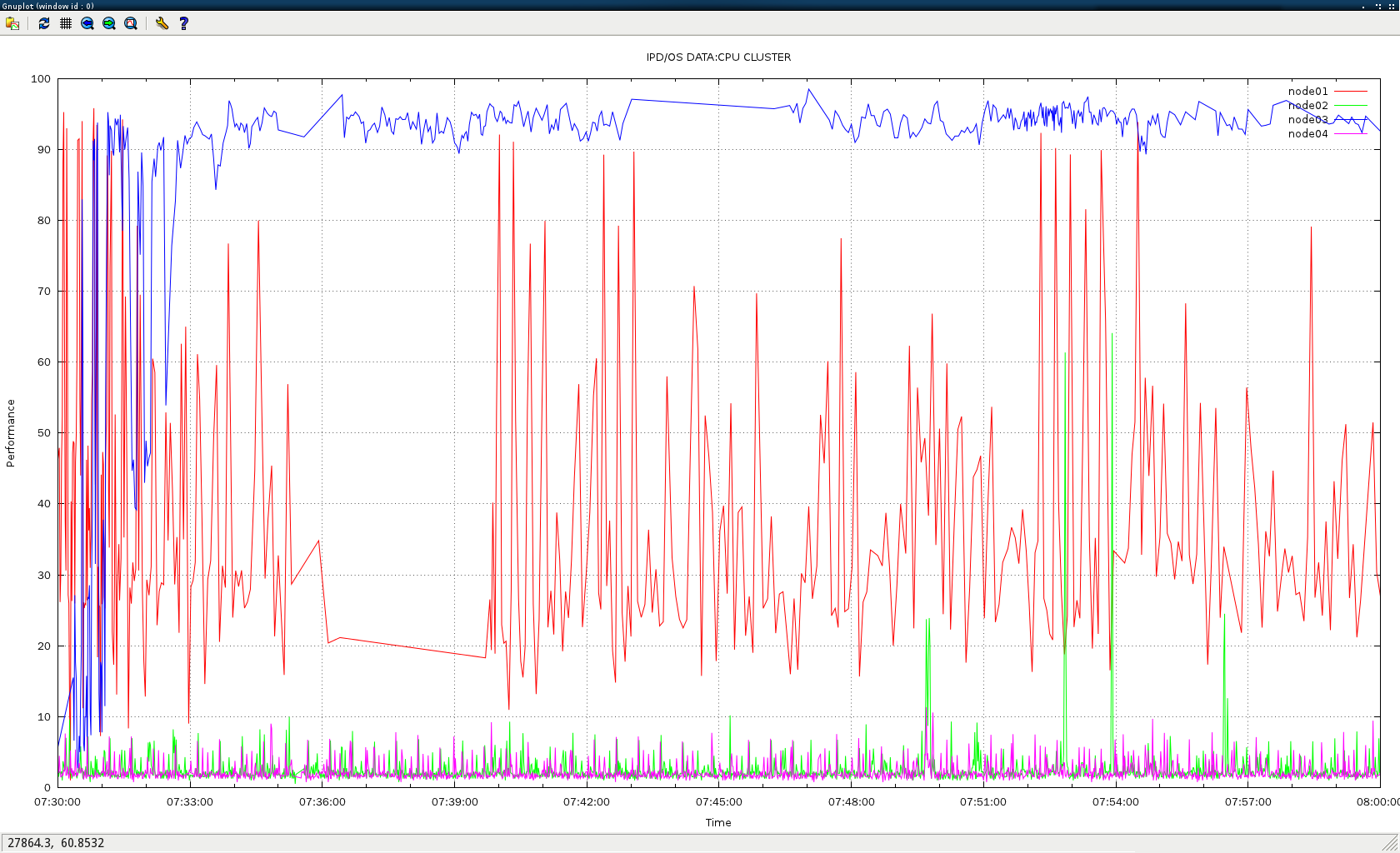

well seems it’s not very clear to put all data in this graphic, we can also just compare a short time.

and then plot the line…
