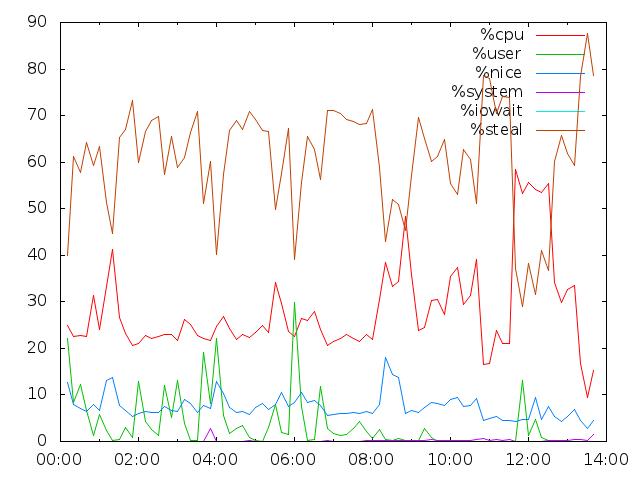

another post on sar graphical report with gnuplot

ipd/os is a very useful tool to monitor/collect system resource status, and from release 11.2.0.3, it’s now merged as a standard component of oracle clusterware.

the new name: oracle CHM(Cluster Healthy Monitor) shows it’s now a tool for clusterware/rac, it’s very useful to record resource usage and status upto 3days.

but ipd/os report is just plain txt with boring data, it’s a better way to show as a graphical report, gnuplot helps.

FOLLOWING DATA IS JUST USED FOR DEMO, DOESNT IMPLICATE ANY PERFORMANCE STATUS OF RUNNING PRODUCTION ENV.

here’s a sample data from classic ipd/os output(the newest chm output may contains tiny different on formatting), it contains sample data from 07:00:00-10:00:00 for node01.

ipdos_data_node01 <this sample file is very large 100M+…. not upload on this server…>
Whoever would like to get the sample data and want to try, please click here:

#1. get the time column.

grep Clock ipdos_data_node01.txt  | awk '{print $5}'| sed s-'--g &gt; time_node01.txt

1	grep Clock ipdos_data_node01.txt \| awk '{print $5}'\| sed s-'--g > time_node01.txt

Sample: time_node01

Following, to retrieve necessary data on cpu/mem usage and iowait #.

#2. format the text, just collect usable data.

grep "#cpus" ipdos_data_node01.txt &gt;  resource_data_node01
sed -i s-;'.*'--g resource_data_node01

1 2	grep "#cpus" ipdos_data_node01.txt > resource_data_node01 sed -i s-;'.*'--g resource_data_node01

Sample:resource_data_node01

#3. get the cpu usage column.

awk '{print $4}' resource_data_node01 &gt;  cpu_node01.txt

1	awk '{print $4}' resource_data_node01 > cpu_node01.txt

Sample:cpu_node01

#4. get the iowait number column.

awk '{print $20}' resource_data_node01 &gt; iowait_data_node01.txt

1	awk '{print $20}' resource_data_node01 > iowait_data_node01.txt

Sample:iowait_data_node01

#5. get memory usage column.
ipd/os just provide column memory free/total/cache, like:

physmemfree: 33068 physmemtotal: 5975632 mcache: 1869232

1	physmemfree: 33068 physmemtotal: 5975632 mcache: 1869232

to calculate the usage%, need to use (physmemtotal – physmemfree – mcache) / physmemtotal *100%

so we need to get the 3 columns.

awk '{print "echo "scale=2;("$10"-"$8"-"$12")/"$10"*100"|bc -l"}'  resource_data_node01 &gt; mem_usage_node01.txt

1	awk '{print "echo "scale=2;("$10"-"$8"-"$12")/"$10"*100"\|bc -l"}' resource_data_node01 > mem_usage_node01.txt

Sample:mem_usage_node01

run the file to get result..

.  mem_usage_node01.txt &gt; mem_node01.txt

1	. mem_usage_node01.txt > mem_node01.txt

Sample: mem_node01

#6 get the report for cpu/mem usage.

paste time_node01.txt cpu_node01.txt  mem_node01.txt  &gt; ipdos_cpu_mem_gnuplot_node01.txt

1	paste time_node01.txt cpu_node01.txt mem_node01.txt > ipdos_cpu_mem_gnuplot_node01.txt

Sample: ipdos_cpu_mem_gnuplot_node01
run gnuplot with following cmd:

set autoscale
set xdata time
set timefmt "%H.%M.%S"
set ylabel "Performance"
set xlabel "Time"
set title "IPD/OS DATA:CPU/MEM"
set xrange ["07.00":"10:00"]
set yrange ["00:00" : "99:99" ]
set grid
set style data lines
plot "ipdos_cpu_mem_gnuplot_node01.txt" using 1:2 title "CPU", '' using 1:3 title "MEM"

set autoscale

set xdata time

set timefmt "%H.%M.%S"

set ylabel "Performance"

set xlabel "Time"

set title "IPD/OS DATA:CPU/MEM"

set xrange ["07.00":"10:00"]

set yrange ["00:00" : "99:99" ]

set grid

set style data lines

plot "ipdos_cpu_mem_gnuplot_node01.txt" using 1:2 title "CPU", '' using 1:3 title "MEM"

#7 get report for iowait usage.

paste  time_node01.txt  iowait_data_node01.txt  &gt;ipdos_iow_gnuplot_node01.txt

1	paste time_node01.txt iowait_data_node01.txt >ipdos_iow_gnuplot_node01.txt

Sample: ipdos_iow_gnuplot_node01

run gnuplot with following cmd:

set autoscale
set xdata time
set timefmt "%H.%M.%S"
set ylabel "iowait"
set xlabel "Time"
set title "IPD/OS DATA:IOWAIT"
set xrange ["07.00":"10:00"]
set yrange ["0" : "9999" ]
set grid
set style data lines
plot "ipdos_iow_gnuplot_node01.txt" using 1:2 title "iowait"

set autoscale

set xdata time

set timefmt "%H.%M.%S"

set ylabel "iowait"

set xlabel "Time"

set title "IPD/OS DATA:IOWAIT"

set xrange ["07.00":"10:00"]

set yrange ["0" : "9999" ]

set grid

set style data lines

plot "ipdos_iow_gnuplot_node01.txt" using 1:2 title "iowait"

#8. comparison on different nodes.
we can show data on 1node for a duration, and also it helps to compare different node status.
following is a sample to show a four-node cluster running cpu usage:
4 samples, each records the cpu usage,
Sample:
ipdos_cpu_mem_gnuplot_node01
ipdos_cpu_mem_gnuplot_node02
ipdos_cpu_mem_gnuplot_node03
ipdos_cpu_mem_gnuplot_node04

*** why not combine the 4 samples, merge into 1 text file?
well, if you watch into the 4files, they’re of different size(line#), different issues matter…
when some node evicted/rebooted, os data that time may lose on that node,
or when the sys stress is very very high, ipd/os will dump data using a longer interval (>1s).
So it’s fine to use different files, of course they all dumps the same duration 07:00:00-10:00:00.
gnuplot accepts different file inputs.
run gnuplot with following cmd:

set autoscale
set xdata time
set timefmt "%H.%M.%S"
set ylabel "Performance"
set xlabel "Time"
set title "IPD/OS DATA CLUSTER "
set xrange ["07.00":"10:00"]
set yrange ["00:00" : "99:99" ]
set grid
set style data lines
plot "ipdos_cpu_mem_gnuplot_node01.txt" using 1:2 title "node01",  "ipdos_cpu_mem_gnuplot_node02.txt" using 1:2 title "node02",   "ipdos_cpu_mem_gnuplot_node03.txt"  using 1:2 title "node03", "ipdos_cpu_mem_gnuplot_node04.txt"  using 1:2 title "node04"

set autoscale

set xdata time

set timefmt "%H.%M.%S"

set ylabel "Performance"

set xlabel "Time"

set title "IPD/OS DATA CLUSTER "

set xrange ["07.00":"10:00"]

set yrange ["00:00" : "99:99" ]

set grid

set style data lines

plot "ipdos_cpu_mem_gnuplot_node01.txt" using 1:2 title "node01", "ipdos_cpu_mem_gnuplot_node02.txt" using 1:2 title "node02", "ipdos_cpu_mem_gnuplot_node03.txt" using 1:2 title "node03", "ipdos_cpu_mem_gnuplot_node04.txt" using 1:2 title "node04"
